9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks

Name: 9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devicesdoor locks
Brand: VIC-TECH
Price: 7 USD

Quality 9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks wholesale

Brand Name : VIC-TECH

Model Number : SM15-77L-T

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 unit

Price : $7-$15/unit

Payment Terms : Western Union, MoneyGram，Credit Card

Supply Ability : 1000000 units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.

Type : Permanent Magnet

Step Angle : 18°/step

Phase : 2 phases

Current / Phase : 600 mA/Phase

Rated Voltage : 9 V DC

Coil Resistance : 15±10% ohm/PHASE(20℃)

Drive Mode : Bipolar Drive

Pull-out Thrust : More Than 230 g At 500 pps

Contact Now

SM15-77L-T Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle Pm Stepper Motor

SM15-77L-T is a precision screw motor. The pitch between the output shaft and the screw is 0.4mm. The rotation of the screw and the screw supports the screw to generate thrust.
The basic step angle of the motor is 18 degrees, the motor runs 20 steps per week, and the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
The actuator adopts the subdivision drive mode to meet the requirements.

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks

Mechanical Dimension:MM

9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks

Parameters:

Model number	SM15-77L-T
Current Per Phase	600 mA/Phase
Coil resistance	15 ±10%Ohm/phase(20℃)
Step angle	18°/step
Rated voltage	9V DC
Phase number	2 phases
Excitation Method	1-2 Phases Excitation
Drive Mode	Bipolar Drive
Pull-Out Thrust	More Than 230g AT 500 PPS
Max Response Frequency	More Than 1300 PPS
Max Staring Frequency	More Than 900 PPS
Insulation Class	CLASS E FOR COILS
Insulation Strength	100 V AC FOR ONE SECOND
Insulation Resistance	50 mΩ (DC 500 V)
Operating Temperature Range	-0~+55℃
Motor surface temperature	80℃ or less

Main Application

1. Camear

2. Optical instruments

3. Lenses

4. Precision medical devices

5. Automatic door locks

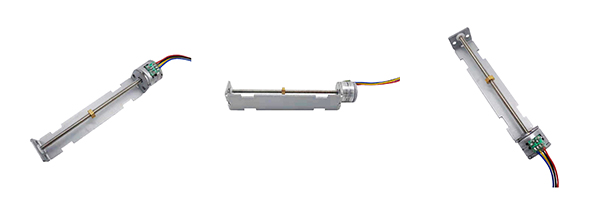

Product Detail Presentation
